Somté Software
SEE MORE AND DO MORE WITH SOMTE FOR HST
For out-of-centre sleep testing for Obstructive Sleep Apnoea, the Somte recorder reliably captures the basic data you need and when you want a better insight into the patient, the Somte has more to offer. Compumedics years of experience in HST diagnostic testing is well reflected in the design of the Somte.
The Somte is a tiny but powerful, holter-style recorder that offers both cardiac and respiratory applications. Unique in its ability to review waveforms on the integrated screen, Somte is compact, and cost-effective with powerful software and intuitive ease of use. Somte excels as an investigative screening tool.
POWERFUL & RELIABLE RECORDING
- 2 channel EXG inputs (for EEG, EOG, EMG or ECG)
- Integrated pressure transducer for nasal flow signal/derived snoring/CPAP pressure
- Body position sensor
- Limb movement channel. Optional thermistor airflow input
- Respiratory bands that utilise inductive technology for semi-quantative recordings
- Integrated high resolution LCD display for convenient control and monitoring functions
- Three-button user-friendly operations
- Powered by 2 AA batteries (alkaline or NiM) for portability
- High capacity data storage
- Colour coded electrodes/sensors for user friendly application
SPECIFICATIONS
COMPREHENSIVE AND UNIQUE ANALYSIS SOFTWARE OPTIONS
Somté software package includes:

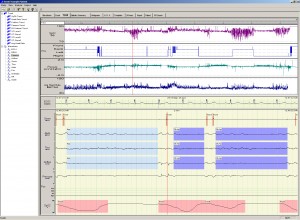

- Full waveform review
- Automatic respiratory event detection and statistics (central apnea, obstructive apnea, mixed apnea, hypopnea, SpO2 desaturation events and artifacts)
- Oximetry analysis
- Full manual event editing capabilities (deletion, reclassification, marking new)
- Event searching
- View patient information
- Comprehensive report generation with user definable template
- Full disclosure printing
OPTIONAL SOMTÉ ECG ANALYSIS PACKAGE INCLUDES:
- Automatic analysis with statistics and histograms
- QRS complex classification
- Arrhythmia detection and classification
- ECG statistics during respiratory events
- Trend data for ST segment and normal R-R interval (heart rate)
- Heart rate variability analysis

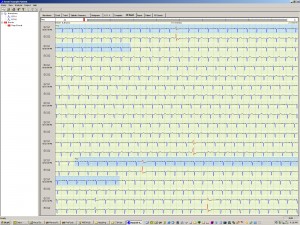

- 24 hour ECG with full disclosure trace display and printing
- ECG template classification and editing
SOMTÉ SOFTWARE SYSTEM REQUIREMENTS:
- A Personal Computer (PC) with one of the following operating systems installed: Microsoft Windows 7, Microsoft Windows XP, Windows 2000 (Service Pack 2 or higher), Windows NT 4.0 (Service Pack 4 or higher), Windows 98 (2nd edition).
- 300 MHz processor (1.8 GHz or higher recommended for optimal perfor mance); Intel Pentium/Celeron family, or compatible processor
- 128 MB RAM (256 MB or higher recommended for optimal perfor mance)
- 1.5 GB of available disk space
- Microsoft compatible mouse
- USB port to accommodate the standard compact flash card reader*
- Super VGA adaptor and monitor (24 bit color, 1280 X 1024 pixels or higher recommended).
*Microsoft Windows NT Users – Please discuss your needs with your Somté distributor
